      CE Certification: Yes
      Model Number: F160
      Brand Name: CreatBot
      Color Print Speed: 120mm/s
      Printing size: 160*160*200mm
      Extruder: Single
      Extruder diameter: 0.4mm 0.5mm 1.0mm
      Filament available: ABS,PLA,PVA,HIPS,PETG,etc
      Filament diameter: 1.75mm
      Max head temperature: 260 degrees (420 optional)
      Max hot bed temperature: 130 degrees
      Software: Creatware,simply 3d
      Net Weight: 20kg
      Volume Weight: 25kg



      Support 260°C Hotend (PEEK version Support 420°C Hotend)

      We are the first one to publish 420°C high temperature nozzle to 3d printer market.

      This kind of nozzle allow to print with a variety of filaments. The nozzle height can also be micro adjusted

      f160_feature_01

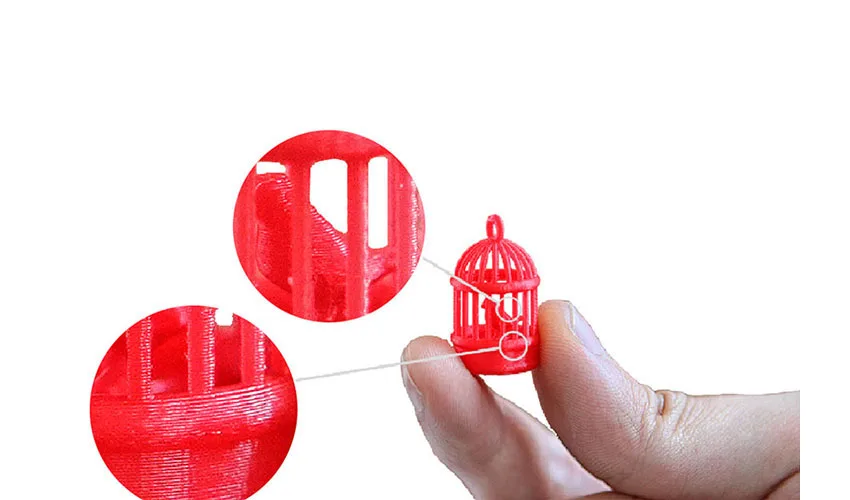

      High Precision & High Speed

      We exclusively research and develop the extruder feeding system, which support high-speed printing.

      Its printing accuracy can reach high to 0.04mm, and it allows to extrude filament steady without block

      f160_feature_02

      Outage Restored & Filament Detection



      The printer will automatically memorize the current position and save print data.

      Lower the platform and withdraw filament when power off suddenly.

      It will continue to print from the last stop and give warning signal.

      f160_feature_05

      Fully Enclosed High-Temperature Chamber

      Fully enclosed chamber can block all external interference and reduce noise.

      Hot chamber can provide constant room temperature so that model won't deform when printing.

      f160_feature_04

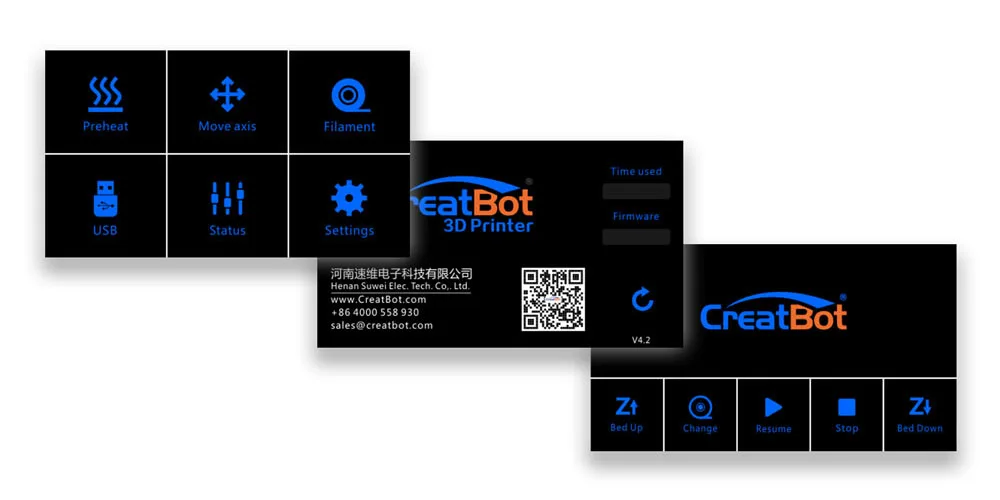

      Touch Screen

      The printer have all-English-menu touch screen which is easily operate and friendly use .

      One key to warm, one key to print as well as many other shortcut keys

      f160_feature_06

      FILAMENT & APPLICATION

      The standard F160 are able to print PLA, ABS, Nylon, etc... perfectly.

      The F160-PEEK version applied to 3D printing of PEEK.

      We supply high quality PEEK filament as well , which requires 400°C extrusion temperature.

      The material have features of high strength, high toughness, corrosion resistance and wear resistance.

      It can be used in aerospace, electronics, medical, machinery, automotive and other industries.

       PEEK(1)    PEEK(2)

      PEEK(4)      PEEK(3)

      PEEK

      TECHNICAL SPECS

       CreatBot F160



      PRINTING

      Print Technolody:

      Fused Deposition Modeling

      Build Volume:

      160*160*200mm (F160)

      Number of Nozzles:

      Single / Double (Depend on your selection)

      Resolution:

      0.04mm

      Layer Resolution:

      0.01mm

      Filament Diameter:

      1.75mm

      Filament Compatibility:

      PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.

      Nozzle Diameter:

      0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)

      Print File Type:

      GCO, GCODE

      TEMPERATURE

      Ambient Operating Temperature:

      15-32°C

      Max. Nozzle Temperature:

      260°C

      Max. Bed Temperature:

      130°C

      SPEED

      Best Printing speed:

      60mm/s

      Max. Printing speed:

      200mm/s

      Max. traveling speed:

      200mm/s

      SPECIAL FUNCTION

      Outage Restored:

      Sava data when power is off

      Filament Detection:

      Pause printing when filament run out

      Automatic Shut-down:

      Turn off the power automatically when printing is complete





      MECHANICAL

      Construction:

      Power-Coated Steel, Aluminum Casting for Motion Components, POM

      Build Plate:

      Heatable Aluminium PCB with BuildTak

      Build Plate Leveling:

      Automatic

      Extruder:

      Directly Drive

      Stepper Motors:

      1.8° Step Angle with 1/16 Micro-stepping

      X Y Positioning Precision:

      12.7 Microns

      Z Positioning Precision:

      1.25 Microns

      ELECTRICAL

      Power Requirements:

      100-240V, 50-60Hz

      Max. Power:

      300W

      Screen:

      4.3" Touch Screen

      Control Chip:

      ATmega 2560

      Storage Media:

      USB Disk

      Connectivity:

      USB

      SOFTWARE

      Software Bundle:

      CreatWare Multi-language

      Supported File Types:

      STL, OBJ, AMF

      Operating Systems:

      Windows (7,8,10)

      Mac OS X

      SIZE & WEIGHT

      Product Dimensions & Weight:

      370*320*490mm 20Kg

      Packing Size & Weight:

      470*420*600mm 25Kg

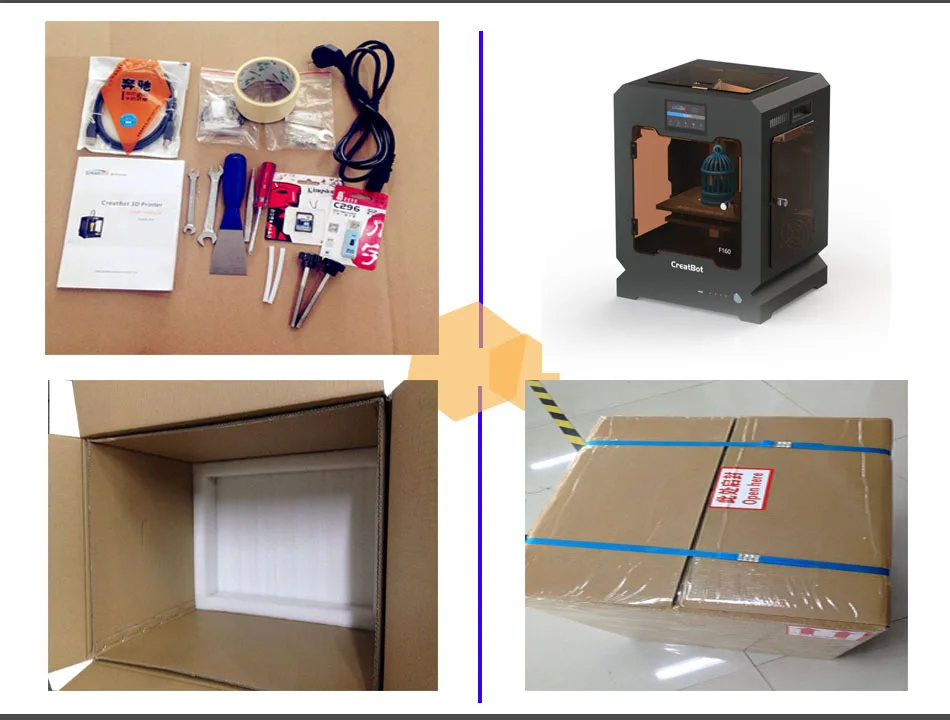

      F-STRONG PACKING

      packing list F160



      FAST SHIPPING

        439 307.jpg
