    CE Certification: Yes
    Model Number: DX03
    Brand Name: CreatBot
    Color Print Speed: 120mm/s
    Printing size: 300*250*300mm
    Extruder: brass/ triple nozzles/0.4mm 0.5mm 1.0mm
    Max extruder temperature: 350 degrees
    Max hot bed temperature: 100 degrees
    Filaments available: ABS,PLA,PETG,PVA,FLEXIBLE materials
    Filament diameter: 3.0mm
    Accuracy: X.Y.Z axis 0.01mm
    Software: Creatware, Simply 3d
    File Format: STL, OBJ, GCODE,AMF
    Net Weight / Package Volumn Weight: 36kg /44kg

    Please note:

    Customers need to know that no matter with free shipping or not, it does not include your country's import tax or clearance costs.
    Please check carefully with your local custom before placing order.



      -PRINTER SHOW

    N DX03-1



    triple    DX03-2









    *Order Details*



    1.Filament (2kg) 3.0mm FOR FREE:



    Both ABS filament and PLA filament are both available.Could you tell us which 3d printing material you want?



    2.Tools box::



    It contains some tools which you probably need to use in assemble or repair. And also some 3d printer parts you may need in future use.



    3.Nozzle size:



    0.4mm (We have 0.3mm/0.5mm/1.0mm in stock. If you want other size, please tell Lacey.)



    4.1 Year Warranty:



    We provide 1 year warranty. If your printer have any problems , please don't hesitate to leave messages to Lacey in Aliexpress.

    She will reply you within 12 hours. If your printer need to replace some printer parts, we will ship the spare parts to you for free only charge shipping fee.

      -why choose us

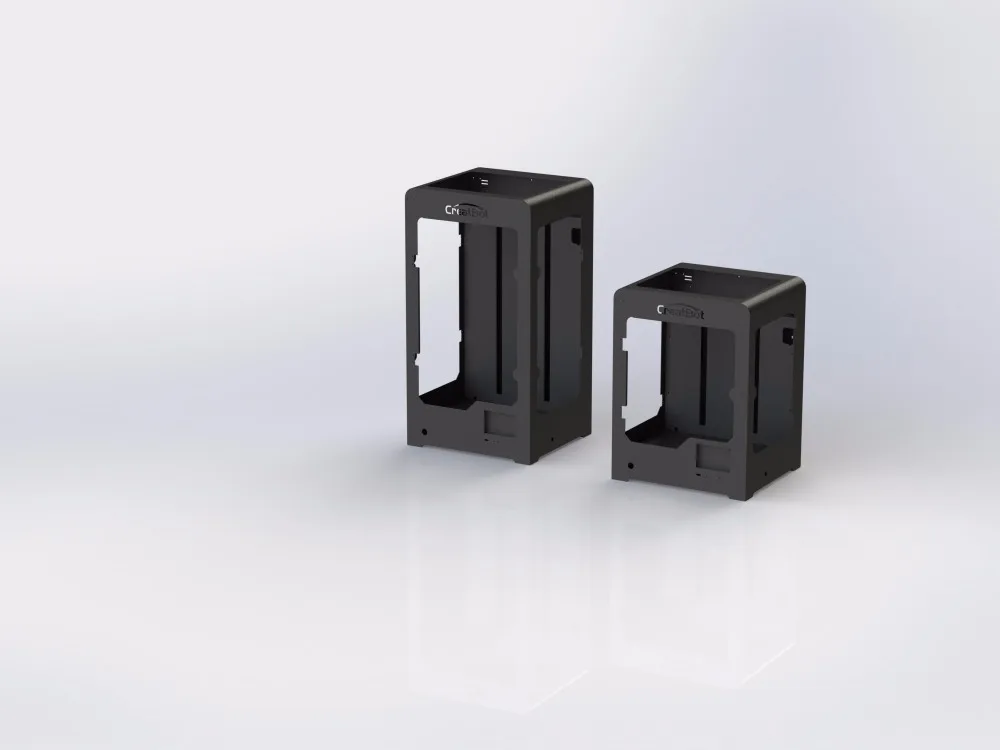

    All Metal Frame

    Unified rugged metal chassis ,One-piece solid process



    CreatBot 3D Printers are strong and precise.

    The 3d printer requires a certain weight to insure the stable operation,

    so a mental chassis is the best choice for a 3D printer.





    Exclusive Multi-function colored touch screen

    47_print_pause              35_menu_preheat_USB

    Remote Wire Feeder Architecture

    Lightest extruder head, lower inertia



    This characteristic of remote wire feeder architecture allows for

    maximum speeds during printing.

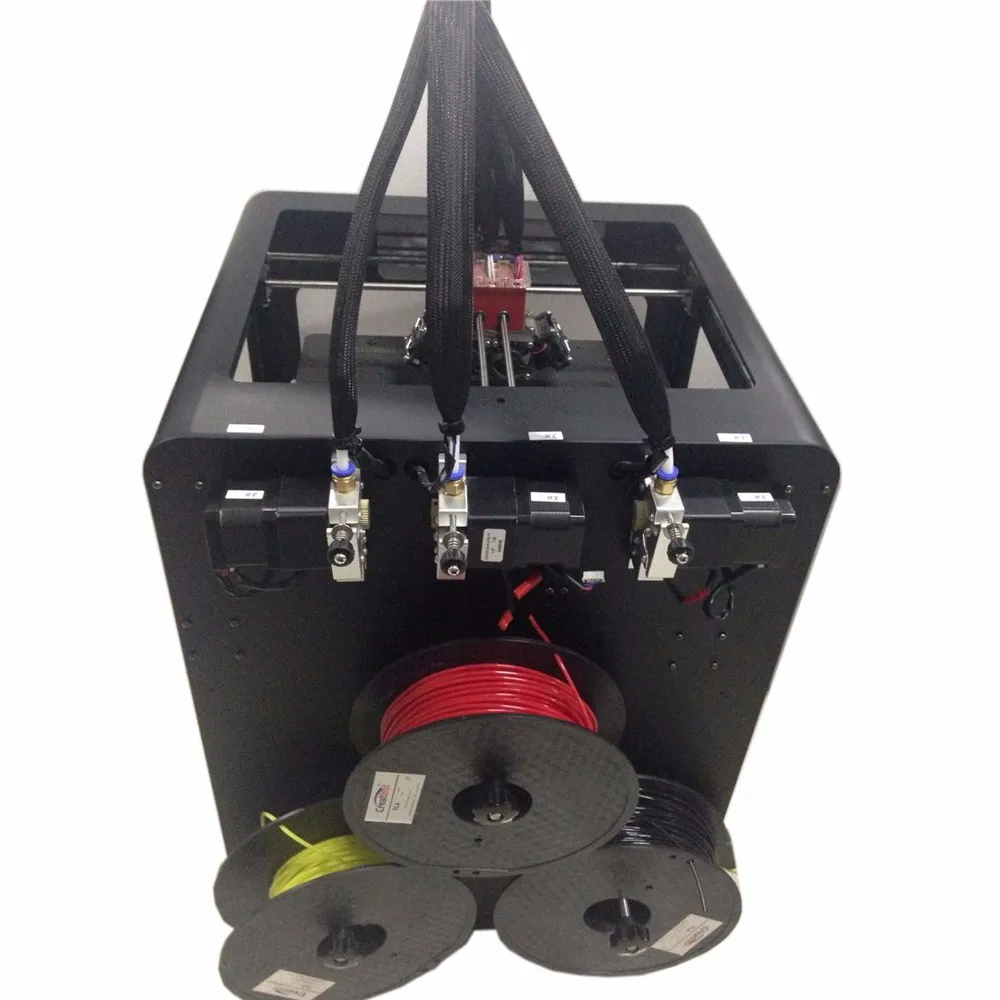

     triple extruders details

    Automatic System Shutdown

    useful and energy efficient



    After printing completed and there is no keyboard click

    within 5 minutes, the system will automatically turn off .

     04

    Geared Motors Feeder

    More torque, feeding precise and retractable



    Geared motors can produce more torque compared to the general stepper motor.

    This can ensure the filament does not slip while wire feeding, ensuring the feeding precision and retraction.

    The design of wire feed roller also ensure the wire feeding not damage the filament.

     05

    * Basic Information *

    Product Model:   DX03

    Build Size:   300*250*300mm

    Extruder:   Triple Extruder

    Print Speed:   120mm/s

    Max.Extruder Temperature:   350 degree ( upgraded)

    Max.Hot Bed Temperature:    100 degree

    Dimension:    420*380*570mm

    Net Weight:    36kg

    * Tech.Parameters *

    Precision: X,Y 0.01mm, Z 0.015 mm

    Min. Layer: 0.04 mm

    Nozzle Diameter: 0.4 mm (0.3 mm / 0.5 mm optional)

    Max. Travel Speed: 250mm / sec.

    Max. Print Speed: 180mm/ sec.

    * Filament *

    Materials: PLA / ABS / PVA / Nylon / PS and so on

    Fila. Diameter: 1.75mm / 3.0mm

    Colors: Black, White, Red, Yellow, Green, Blue

    * Hardware *

    Controller:   Arduino ATmega2560 R3Micro Controller

    Mother Board:   CreatBot Stable Main Board V3.x

    Stepper Motor:  X, Y 42*48, 1.3A

    Stepper Motor:   Z 42*42, Ratio 1:10

    Power Input:  110 -220V, 1.5 A

    Power Output:  24V, 10.5A

    * Software *

    OS: XP/Vista, Win7,Win 8

    File Format: STL, OBJ, GCode, Amf

    Slicer: Creatware,Cura, Simply3d

    Print Software: Cura, Printrun, RepetierHost

    * Real printer show *

    3 5

     Industry designPLA PETG WOODS PRINTSPVA FLEXIBLE PRINTS

        Creatbot 3d printer can be used in the different areas, such as Industry, architecture,Design, Education, Medical industry, cultural relic, food industry, accessories, etc.

     -STRONG PACKING

       Our machine are packed by thickness carton, honeycomb board, and protective PE foam,which can protect Suwei 3d printer in a good performance when you receive it.

    packing listour factory

        Henan Suwei Electronic Technology Co., Ltd is a professional manufacturer for CreatBot 3 d printers. Creatbot 3d printer are featured in high precision, large printing area, all metal frame and dual extruder. From last year, we studied and produced triple extruder printers.So far, we have new arrivers,DG 600*600*600mm.The biggest printing area in desktop FDM printers' market. It's very popular. We are a proffesional and young team. If you have any good suggestions, please don't hesitate to contact us. Welcome your ideas.
