Model Number: CreatBot DX PLUS
CE Certification: Yes
Brand Name: CreatBot
Color Print Speed: 120mm/s
Print materials: PLA, ABS, HIPS,WOOD,PVA, Nylon
Recommended: PLA
Specification
Product Model: DX+03

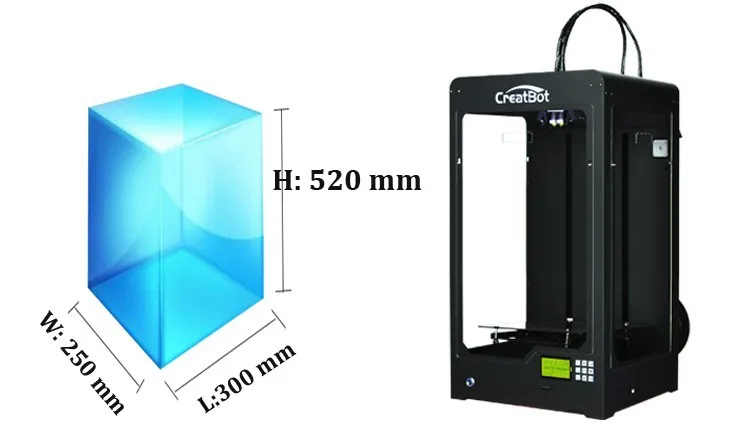

Build Size: 300*250*520mm
Extruder: Triple Exturder
Print Speed: 120mm/s
Max.Extruder Temperature: 250 degree
Max.Hot Bed Temperature: 120 degree
Dimension: 420*380*790mm
Net Weight: 35kg
Tech. Parameters
Precision: X,Y 0.01mm, Z 0.015 mm
Min. Layer: 0.04 mm
Nozzle Diameter: 0.4 mm (0.3 mm / 0.5 mm optional)
Max. Travel Speed: 250mm / sec.
Max. Print Speed: 180mm/ sec.
Filament
Materials: PLA / ABS / PVA / Nylon / PS and so on
Fila. Diameter: 1.75mm / 3.0mm
Colors: Black, White, Red, Yellow, Green, Blue
Hardware
Controller: Arduino ATmega2560 R3Micro Controller
Mother Board: CreatBot Stable Main Board V3.x
Stepper Motor: X, Y 42*48, 1.3A
Stepper Motor: Z 42*42, Ratio 1:10
Power Input: 110 -220V, 1.5 A
Power Output: 24V, 10.5A
Software
OS: XP/Vista, Win7,Win 8
File Format: STL, OBJ, GCode, Amf
Slicer: Cura, Slic3r
Print Software: Cura, Printrun, RepetierHost
New function
Advantages
1. Metal Body: Creatbot 3d Printer is a full steel structure 3D printer, in addition to this, 99% parts of this printer are made of high strength or high tolerance materials that ensures high-precision printing, long term serve time and much better than wooden frame printer.
2.Thermostat: With insulating cover for constant temperature printing space, preventing edge warping and deformation while large prototype printing. and the cover is easily removed.
3.Large Build size: Build size is up to 300*250*520mm (L/W/H), far more than other available 3D printer in the worldwide market.
4. Triple Nozzle: The extruder made by special materials and used advanced design technology, which is more stable and longer life. And can make 3 colors printing.
5.No Block: The new generation nozzle has formed a perfect solution and can prevent block the nozzle.
6.High precision: Imported bearing and rail, all parts made by CNC, accuracy of X, Y is up to 0.01 mm, Z to 0.015mm, and the minimum layer is only 0.04 mm.
7.Accuracy Feeder: Exclusively designed filament feeder, and using professional precision gear motor can ensure feed filament accurately.
8.High Speed: highest speed printer in the market, travel speed is up to 250mm/sec, and print speed is up to 180mm/sec, which are more than reprap and makerbot.
9.Various Filament: PLA, ABS, PVA, and other kind can be used. We support to use PLA, for no smell, environmental, degradable and easy to shape.
10.Self-researched Motherboard and Software
New Kind: Triple Extruder
Application
Creatbot 3d printer can be used in the different areas, such as Industry, architecture
Design, Education, Medical industry, cultural relic, food industry, accessories, etc.
Packing and Accessories
Our machine are packed by thickness carton, honeycomb board, and protective PE foam, which can protect 3d printer in a good performance when you receive it.
Please kindly check the packing photos as below:
Shipping
You can choose express, air or shipping at your request.
For the express, DHL/Fedex/TNT/UPS you can choose.
As we can get the lowest discounts price, before your quotation, we will check the shipping charges by all these express, and select one of the cheapest one for you.
Services
1. Provide OEM service.(best price)2. Provide 2 Free PLA filament.
3. Provide Free software updates.( Update and maintain long-term )
4. Provide Discounts base on your quantity.
*Second purchasing can also get the discount
5. 24 hours Online Customer Service.Or Email/Skype, etc...
*You can choose the way your prefer to contact
6. Send you the Free new “gcode” 3d print model document to print out.
Support
1. If you have a technical problem or if your machine is misbehaving, we have friendly support standing by to provide free expert care to get you and your machine back on track. One year warranty is available.
2. We can provide 24 hours Online Customer Service: Trademanager, Phone, Email, or Skype is OK. Do our best to get back to you as soon as possible.
3. Returns are possible only on unused items, within 7 days of receipt. We will provide parts or service on items that prove to be defective from the time of manufacture, and we'll work with you to get your printer running again.
Company Information
Henan Speed Electronic Technology Co., Ltd is a professional manufacturer for 3 d printers, Creatbot 3d printer as the sub-brand our company, gets the high praised by domestic and foreign markets, with high precision, large size, dual nozzle, and all metal framework. Creatbot 3D printer own invention patents "excellent nozzle head", "precision wire feeder", etc. And has passed the international CE product safety certification.
