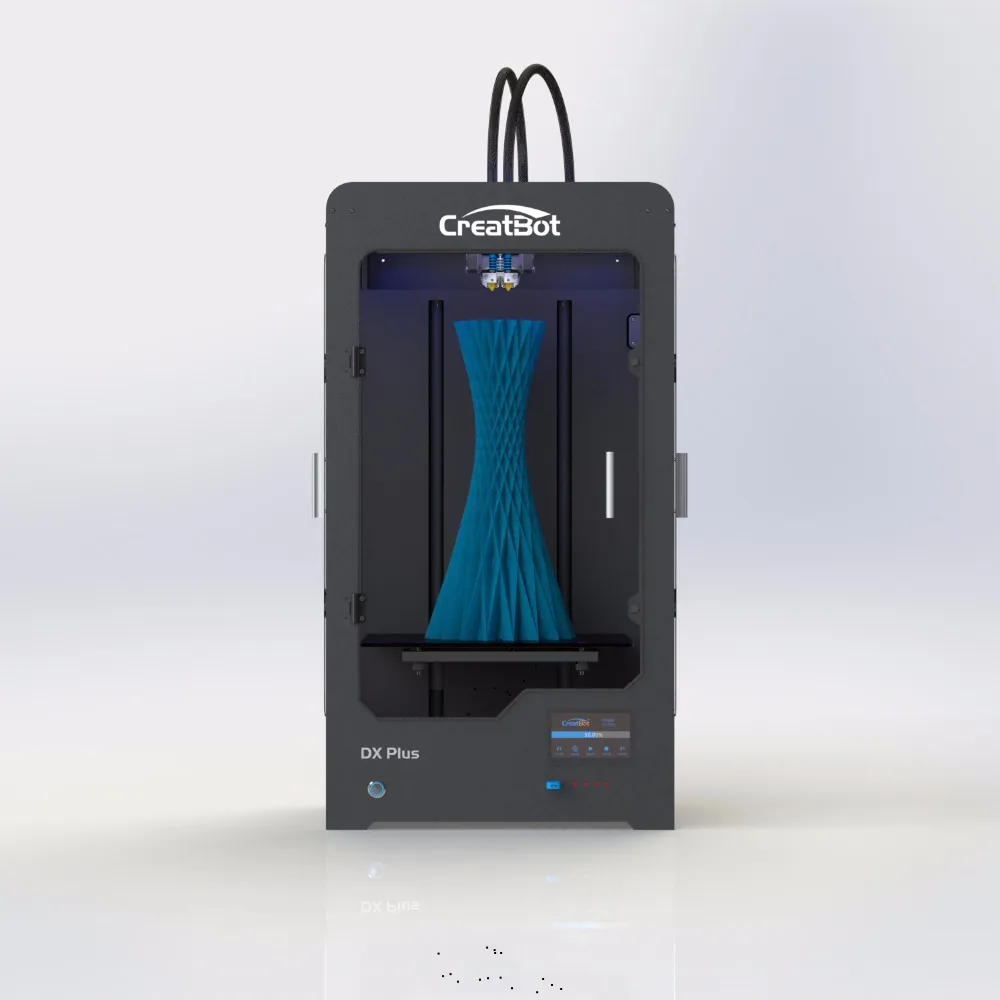

Model Number: CreatBot DX PLUS
CE Certification: Yes
Brand Name: CreatBot
Color Print Speed: 120mm/s
Printing size: 300*250*520 mm
3d printer Extruder: brass dual nozzle
Extruder size: 0.3mm 0.4mm 0.5mm 1.0mm
Filament diameter: 1.75mm 3.0mm
Max extruder temperature: 350 degrees
Accuracy: X.Y,Z axis 0.01mm
Software: Creatware, Simply 3d,Cura
File Format: STL,OBJ, GCODE, AMF
Net weight / Volume weight: 40kg / 56kg

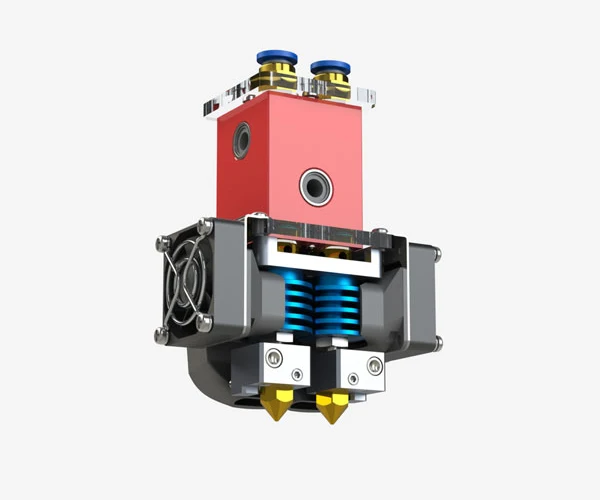

TEMPERATURE UP TO 350°C
We are the first one to publish 350°C ultra-hight temperature nozzle to mass market and it possess exclusive patent.
This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak.
The nozzle height can also be micro adjusted. And we accept customized for single/double/triple head.
Basic Informations Filament
Product Model: DX PLUS02 Materials: PLA ABS PVA Nylon PS Flexible
Build Size: 300*250*520mm Hips PETG and so on
Extruder: Dual Extruder Fila. Diameter: 1.75mm / 3.0mm
Print Speed: 120mm/s Colors: Black, White, Red, Yellow, Green, Blue
Max.Extruder Temperature: 350 degree ( upgraded) Software
Max.Hot Bed Temperature: 100 degree OS: XP/Vista, Win7,Win 8
Dimension: 420*380*790mm File Format: STL, OBJ, GCode, Amf
Net Weight: 40kg Slicer: Creatware,Cura, Simply3d
Package Weight: 56kg Print Software: Cura, Printrun, RepetierHost
Tech. Parameters Hardware
Precision: X,Y 0.01mm, Z 0.015 mm Controller: Arduino ATmega2560 R3Micro Controller
Min. Layer: 0.04 mm Mother Board: CreatBot Stable Main Board V3.x
Nozzle Diameter: 0.4 mm (0.3 mm / 0.5 mm optional) Stepper Motor: X, Y 42*48, 1.3A
Max. Travel Speed: 250mm / sec. Stepper Motor: Z 42*42, Ratio 1:10
Max. Print Speed: 180mm/ sec. Power Input: 110 -220V, 1.5 A Power Output: 24V, 10.5A
1.Filament (2kg) 3.0mm FOR FREE:
Both ABS filament and PLA filament are both available.Could you tell us which 3d printing material you want?
It contains some tools which you probably need to use in assemble or repair. And also some 3d printer parts you may need in future use.
0.4mm (We have 0.3mm/0.5mm/1.0mm in stock. If you want other size, please tell Lacey.)
4.1 Year Warranty:
We provide 1 year warranty. If your printer have any problems , please don't hesitate to leave messages to us.
Henan Suwei Electronic Technology Co., Ltd is a professional manufacturer for CreatBot 3 d printers. Creatbot 3d printer are featured in high precision, large printing area, all metal frame and dual extruder. From last year, we studied and produced triple extruder printers.So far, we have new arrivers,DG 600*600*600mm.The biggest printing area in desktop FDM printers' market. It's very popular. We are a professional and young team. If you have any good suggestions, please don't hesitate to contact us. Welcome your ideas.
