Product Description

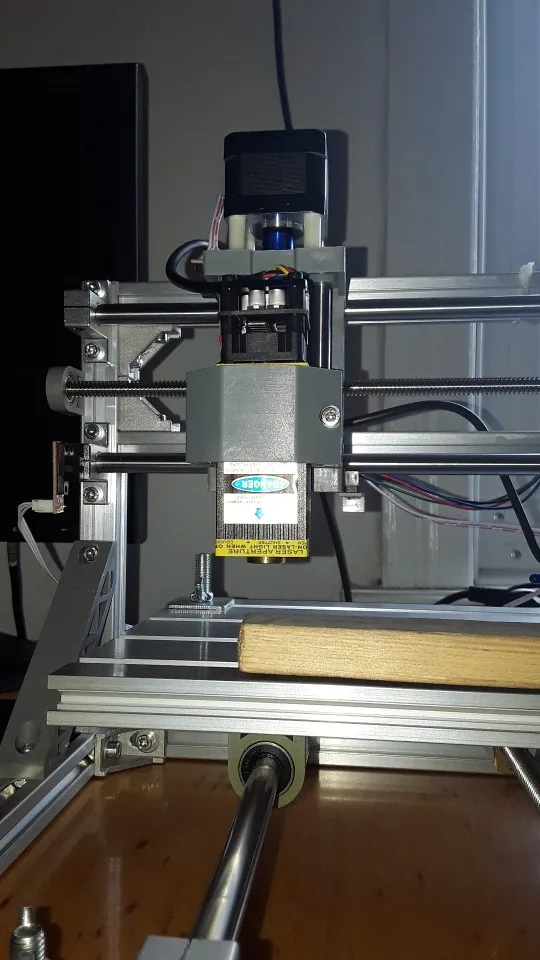

CNC 3018 Pro 15W Engraving Machine
GRBL control DIY
Desktop CNC router for Plastic, wood, acrylic, PVC, PCB
This model is an upgrade of the CNC 3018 Black.
Designed for the absolute beginner, it's a great tool for starting CNC learning. If wood-working is your hobby, you can use it to add features like curved words and exquisite patterns. If you are a student just learning CNC, it can help you engrave models which you are coding and designing.
Advantages:
1.Manual Control: Manually adjust the position of the three axes of XYZ as the starting point of carving, manually open or close the spindle.
2.Document Engraving: The offline board can be linked to the GRBL control board for carving without storing a computer.
3.Two advantages of Offline Controller:
* No need to connect the computer;
* No need to download files, the engraving file can be directly accessed.
4.Suitable for carve wood, plastic, acrylic, PCB, soft metal like copper and aluminum and other materials. Can engrave metal such as stainless steel ( all laser can not cut plywood) but can not carve hard metal, jade and other very hard texture of the items.
PLEASE NOTE:
Customers need to know that no matter with free shipping or not, it does not include your country's import tax or clearance costs.
Please check carefully with your local custom before placing order.
Model:
|
CNC3018 Pro
|
Material:
|
Aluminum Alloy
|
Main Color:
|
Black + Silver
|
Power Supply:
|
24V 10A
|
Plug Type:
|
US
|
Supported OS:
|
Windows XP/ Win 7/ Win 8/ Win10
|
Supported Formats:
|
jpg / bmp / png
|
Communication
|
Port: Micro USB
|
Engraving Area:
|
300 x 180 x 40mm
|
Frame Size:
|
400 x 330 x 240mm
|
Table-board Size:
|
300 x 180mm
|
Spindle:
|
200W
|
Spindle Chuck:
|
ER11
|
Step Motor
|
1.3A 0.25N.m
|
Drill Bits:
|
Tip 0.1mm, 20 degree, diameter 3.175mm
|
Software:
|
GRBL Control
|
Laser (options): | 1000MW/2500MW/5500MW/7W / 10 W 5500MW & 7W & 10W |
Laser Quick Replace:
|
Supported
|
