CE Certification: Yes
Model Number: F160
Brand Name: CreatBot
Color Print Speed: 120mm/s
Printing size: 160*160*200mm
Extruder: Single
Extruder diameter: 0.4mm 0.5mm 1.0mm
Filament available: ABS,PLA,PVA,HIPS,PETG,etc
Filament diameter: 1.75mm
Max head temperature: 260 degrees (420 optional)
Max hot bed temperature: 130 degrees
Software: Creatware,simply 3d
Net Weight: 20kg
Volume Weight: 25kg

Support 260°C Hotend (PEEK version Support 420°C Hotend)

We are the first one to publish 420°C high temperature nozzle to 3d printer market.

This kind of nozzle allow to print with a variety of filaments. The nozzle height can also be micro adjusted

High Precision & High Speed

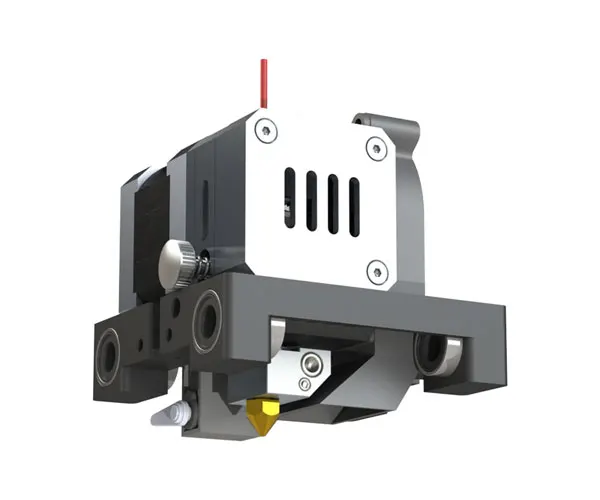

We exclusively research and develop the extruder feeding system, which support high-speed printing.

Its printing accuracy can reach high to 0.04mm, and it allows to extrude filament steady without block

Outage Restored & Filament Detection

The printer will automatically memorize the current position and save print data.

Lower the platform and withdraw filament when power off suddenly.

It will continue to print from the last stop and give warning signal.

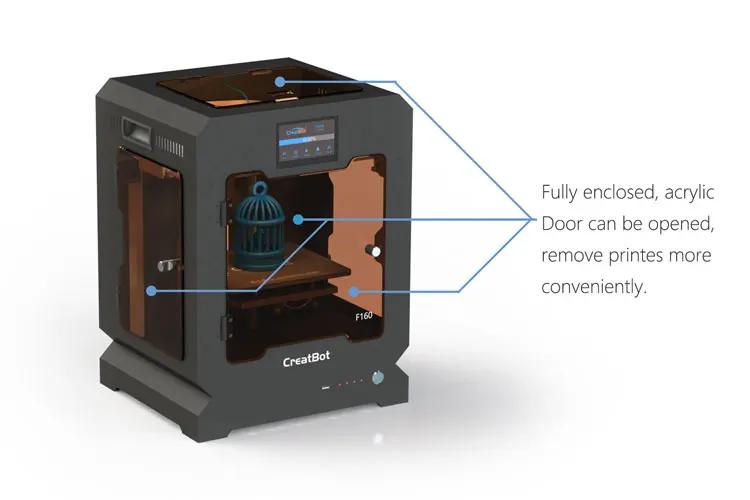

Fully Enclosed High-Temperature Chamber

Fully enclosed chamber can block all external interference and reduce noise.

Hot chamber can provide constant room temperature so that model won't deform when printing.

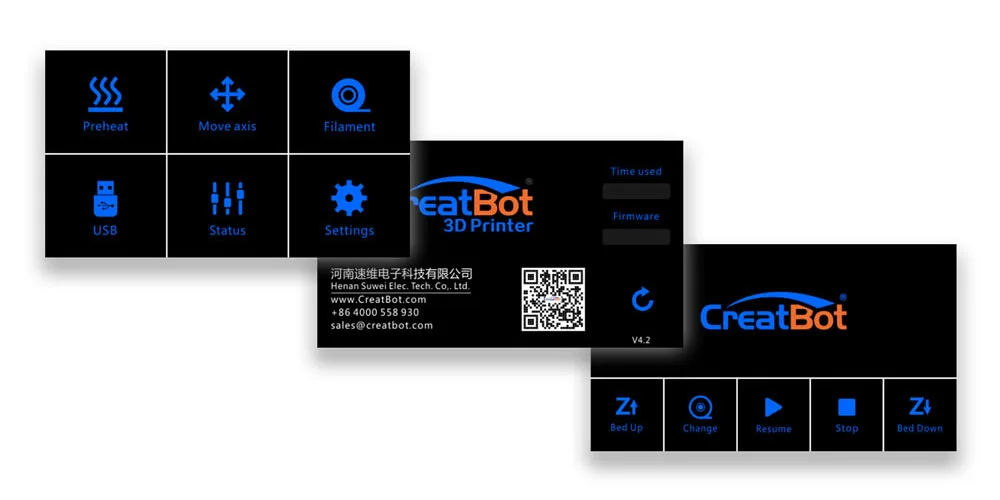

Touch Screen

The printer have all-English-menu touch screen which is easily operate and friendly use .

One key to warm, one key to print as well as many other shortcut keys

FILAMENT & APPLICATION

The standard F160 are able to print PLA, ABS, Nylon, etc... perfectly.

The F160-PEEK version applied to 3D printing of PEEK.

We supply high quality PEEK filament as well , which requires 400°C extrusion temperature.

The material have features of high strength, high toughness, corrosion resistance and wear resistance.

It can be used in aerospace, electronics, medical, machinery, automotive and other industries.



​

TECHNICAL SPECS

 CreatBot F160

PRINTING

Print Technolody:

Fused Deposition Modeling

Build Volume:

160*160*200mm (F160)

Number of Nozzles:

Single / Double (Depend on your selection)

Resolution:

0.04mm

Layer Resolution:

0.01mm

Filament Diameter:

1.75mm

Filament Compatibility:

PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.

Nozzle Diameter:

0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)

Print File Type:

GCO, GCODE

TEMPERATURE

Ambient Operating Temperature:

15-32°C

Max. Nozzle Temperature:

260°C

Max. Bed Temperature:

130°C

SPEED

Best Printing speed:

60mm/s

Max. Printing speed:

200mm/s

Max. traveling speed:

200mm/s

SPECIAL FUNCTION

Outage Restored:

Sava data when power is off

Filament Detection:

Pause printing when filament run out

Automatic Shut-down:

Turn off the power automatically when printing is complete

MECHANICAL

Construction:

Power-Coated Steel, Aluminum Casting for Motion Components, POM

Build Plate:

Heatable Aluminium PCB with BuildTak

Build Plate Leveling:

Automatic

Extruder:

Directly Drive

Stepper Motors:

1.8° Step Angle with 1/16 Micro-stepping

X Y Positioning Precision:

12.7 Microns

Z Positioning Precision:

1.25 Microns

ELECTRICAL

Power Requirements:

100-240V, 50-60Hz

Max. Power:

300W

Screen:

4.3" Touch Screen

Control Chip:

ATmega 2560

Storage Media:

USB Disk

Connectivity:

USB

SOFTWARE

Software Bundle:

CreatWare Multi-language

Supported File Types:

STL, OBJ, AMF

Operating Systems:

Windows (7,8,10)

Mac OS X

SIZE & WEIGHT

Product Dimensions & Weight:

370*320*490mm 20Kg

Packing Size & Weight:

470*420*600mm 25Kg
