Color Print Speed: 120mm/s
Model Number: D600 Pro
CE Certification: Yes
Brand Name: CreatBot
Printing size: 600*600*600mm
Extruder: Brass dual nozzles
Extruder diameter: 0.4mm 0.5mm 1.0mm
Filament available: ABS,PLA,PVA,HIPS,PETG,etc
Filament diameter: 1.75mm 3.0mm
Max head temperature: 400 degrees
Max hot bed temperature: 120 degrees
Software: Creatware,simply 3d
Net Weight: 164kg
Volume Weight: 258kg
The CreatBot D600 is truly an impressive manufacturing machine. Its super large and completely closed build space of 600 x 600 x 600 mm is perfect if you like to process advanced filaments like PEEK, Ultem, Nylon, PC or other thermoplasts that need high-temperatures (for example ABS). Realize industrial FFF / FDM 3D prints of complex parts. This is possible due to its dual extruder. Simply 3D print with one filament for the object and a support material for overhangs.
- Super large building volume of 600*600*600mm
- High precision up to 0,01 mm
- Dual and Triple-extruders
- Fully enclosed building chamber
- Nozzle temperature up to 400° C
- High precision manufacturing
- Complete steel-body for high stability and sustainability
- Industrial linear guide rail which is key to high manufacturing quality
- Power failure-safe
- Easy to navigate touch screen
Industrial 3D printer CreatBot D600 Pro – 3D print very large and complex parts and objects
3D print with the CreatBot D600 Pro very large and complex parts and objects. The D600 Pro is an industrial high temperature 3D printer with a very high manufacturing quality and enormously large heated installation space (60x60x60 cm). The all-metal frame always offers you smooth running, precise linear guidance of the extruder and enormous noise reduction. Control the 3D printer comfortably and intuitively via the touch display and rely on reliably good production results thanks to BuildTak adhesives, heated building platform and heated filament drying chamber.
CreatBot D600 Pro improvements over D600:
- 25 control points check the setting of the building platform and level it automatically
- Precise linear guide rail for stable and smooth running
- Power failure protection automatically remembers the last position and continues 3D printing
- Heated building platform made of glass and BuildTak adhesives
- Easy control via the 4.3-inch touch screen
- Construction chamber heated to 70 degrees minimizes warping
- Filament drying chamber for nylon and other hydrophilic filaments
- More features of the CreatBot D600 Pro:
- Manufacturing temperature up to 260°C hotend(left) and 420°C hotend(right)
- High precision 3D printing – up to 0.05 mm

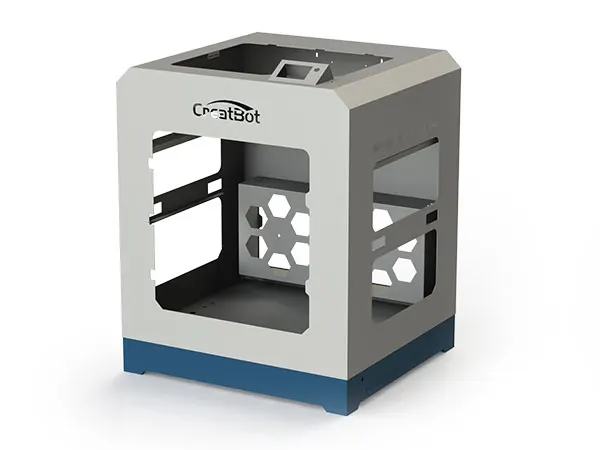

- Stable installation space made of steel guarantees reliable results
- Very large installation space of 600 x 600 x 600 mm
- Completely enclosed construction chamber for stable temperatures and noise reduction
- Perfect for additive production with high-performance thermoplastics
Customers need to know that no matter with free shipping or not, it does not include your country's import tax or clearance costs.
Please check carefully with your local custom before placing order.
AUTO LEVELING PLATFORM PRO
Use of 25 points through the BL-Touch probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.
1. All metal hotend, more durable 400°C support more different filaments in the market. Nozzle height adjustable.Direct Head Driving
2.FULLY ENCLOSED CHAMBER
The fully enclosed chamber can block all external . interference. Also this frame, can reduce noises, at the same time, constant temperature keep the model won't deform.
3.ACCURATE LINEAR GUIDE RAIL
The accurate linear rail structure can print models in accuracy high reach to 50 times higher than the other ordinary optical axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.
4.OUTAGE RESTORED & FILAMENT DETECTION
The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament when the power off suddenly.

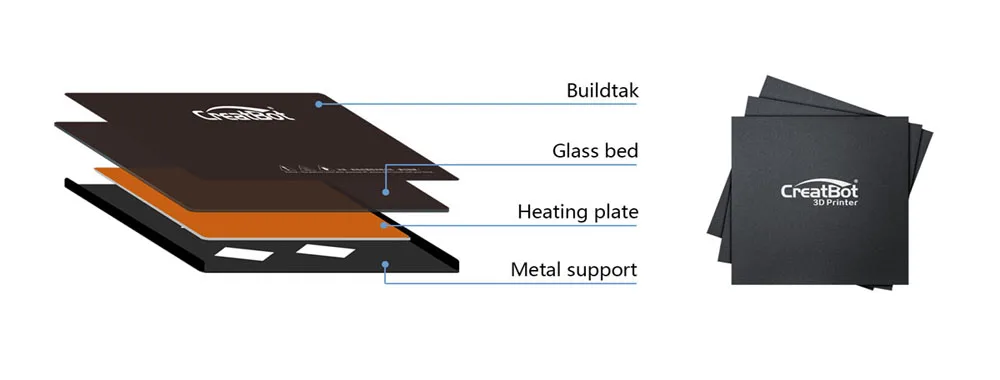

The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number of layers.
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady with out block.
Precision up to:0.01mm Speed up to: 200mm/s
7.HUGE BUILD VOLUME
D600 is a real industrial level 3D printer, it can print largest build volume of 600*600*600mm, 30 times bigger than it of other ordinary 3D printer in nowaddays mass market.
CreatBot D600 build volume: 600*600*600mm.

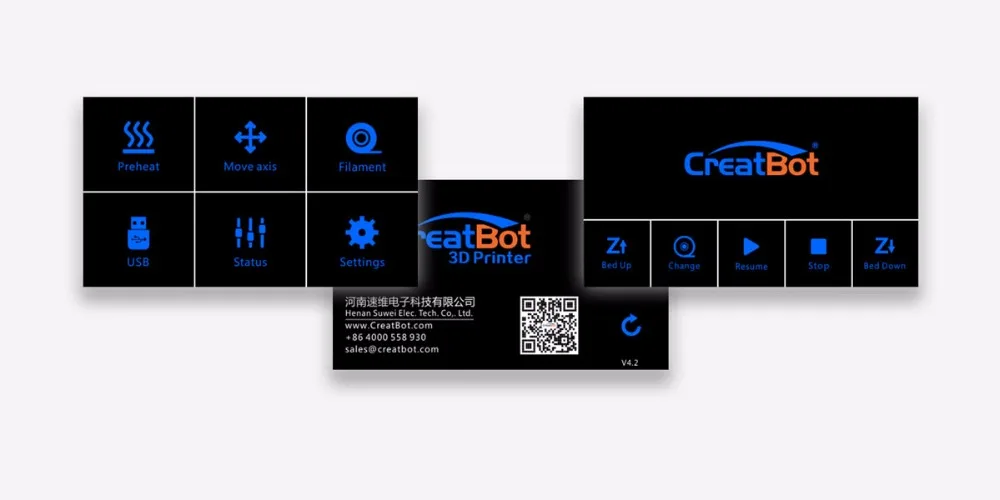

8.EASY TOUCH SCREEN
The printer has a 4.3" touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other shortcut keys.
* Basic Information * * Tech.Parameters *
Product Model: D600 Precision: X,Y 0.01mm, Z 0.015 mm
Build Size: 600*600*600mm Min. Layer: 0.04 mm
Extruder: Dual Extruder Nozzle Diameter: 0.4 mm (0.3 mm / 0.5 mm optional)
Print Speed: 120mm/s Max. Travel Speed: 250mm / sec.
Max.Extruder Temperature: 400 degree ( upgraded) Max. Print Speed: 180mm/ sec.
Max.Hot Bed Temperature: 120 degree Materials: PLA / ABS / PVA / Nylon / PS and so on
Dimension: 910*840*1100mm Fila. Diameter: 1.75mm / 3.0mm
Net Weight: 164kg Package Weight: 258kg Colors: Black, White, Red, Yellow, Green, Blue
* Hardware * * Software *
Controller: Arduino ATmega2560 R3Micro Controller OS: XP/Vista, Win7,Win 8
Mother Board: CreatBot Stable Main Board V3.x File Format: STL, OBJ, GCode, Amf
Stepper Motor: X, Y 42*48, 1.3A Slicer: Creatware,Cura, Simply3d
Stepper Motor: Z 42*42, Ratio 1:10 Print Software: Cura, Printrun, RepetierHost
Power Input: 110 -220V, 1.5 A
Power Output: 24V, 10.5A
