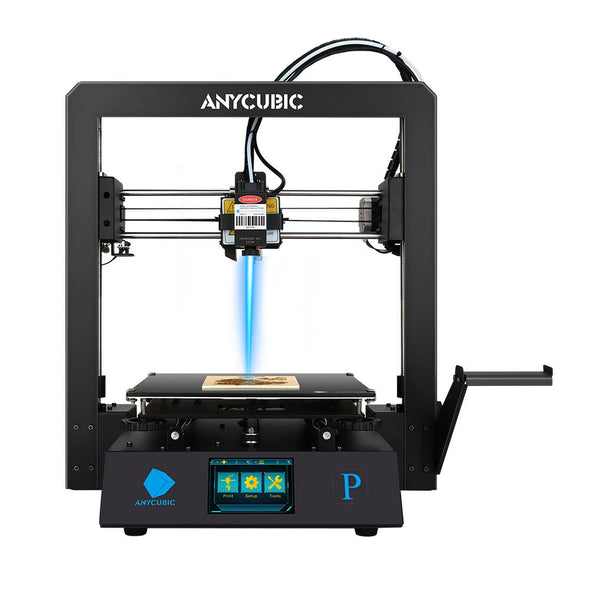

Laser Engraving |

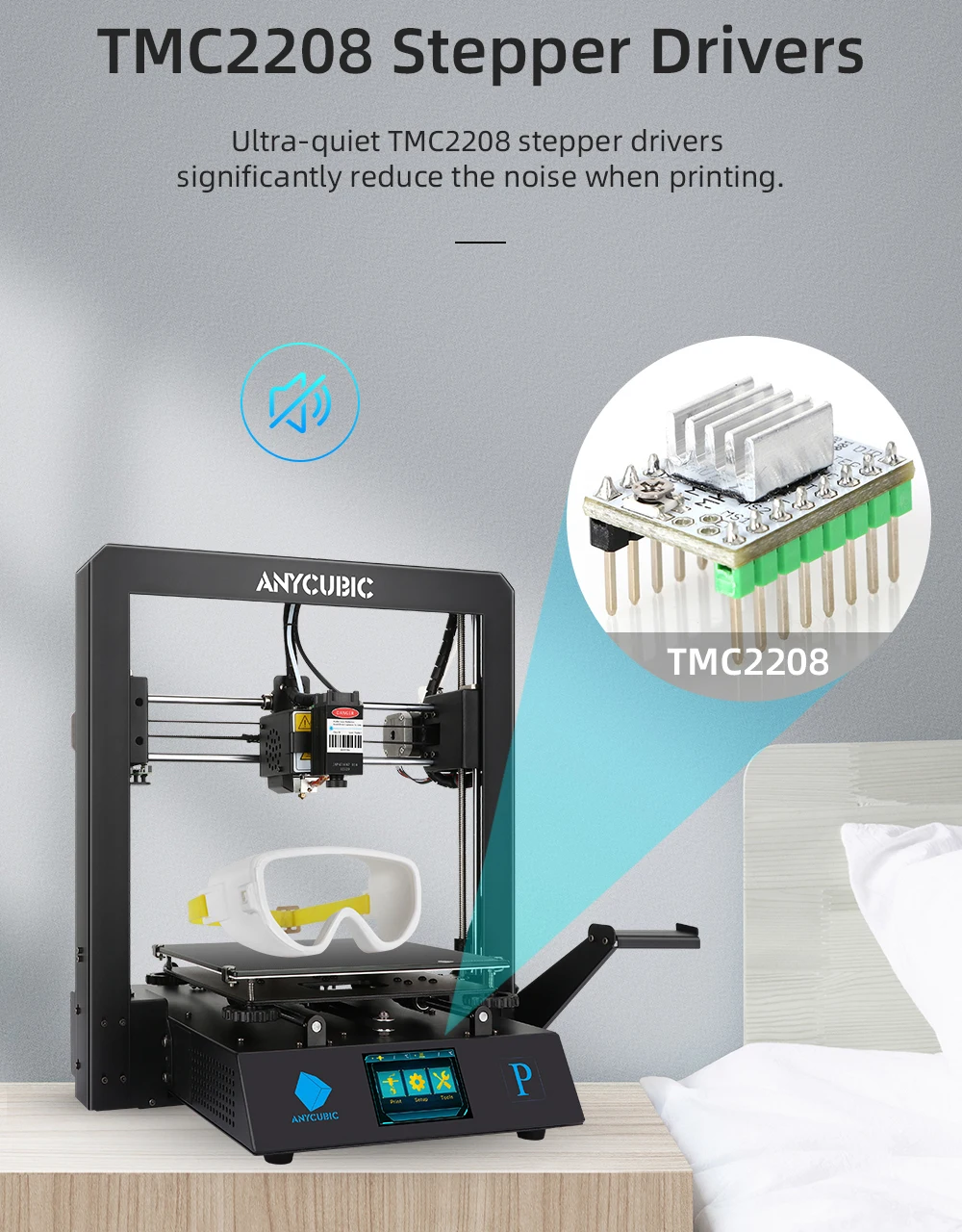

Stepper Drivers |
Pause at Desired Height |
Big Build Volume |
PLEASE NOTE:
Customers need to know that no matter with free shipping or not, it does not include your country's import tax or clearance costs.
Please check carefully with your local custom before placing order.
When you place the order, please kindly leave us a message about what specification of power and plug you need.

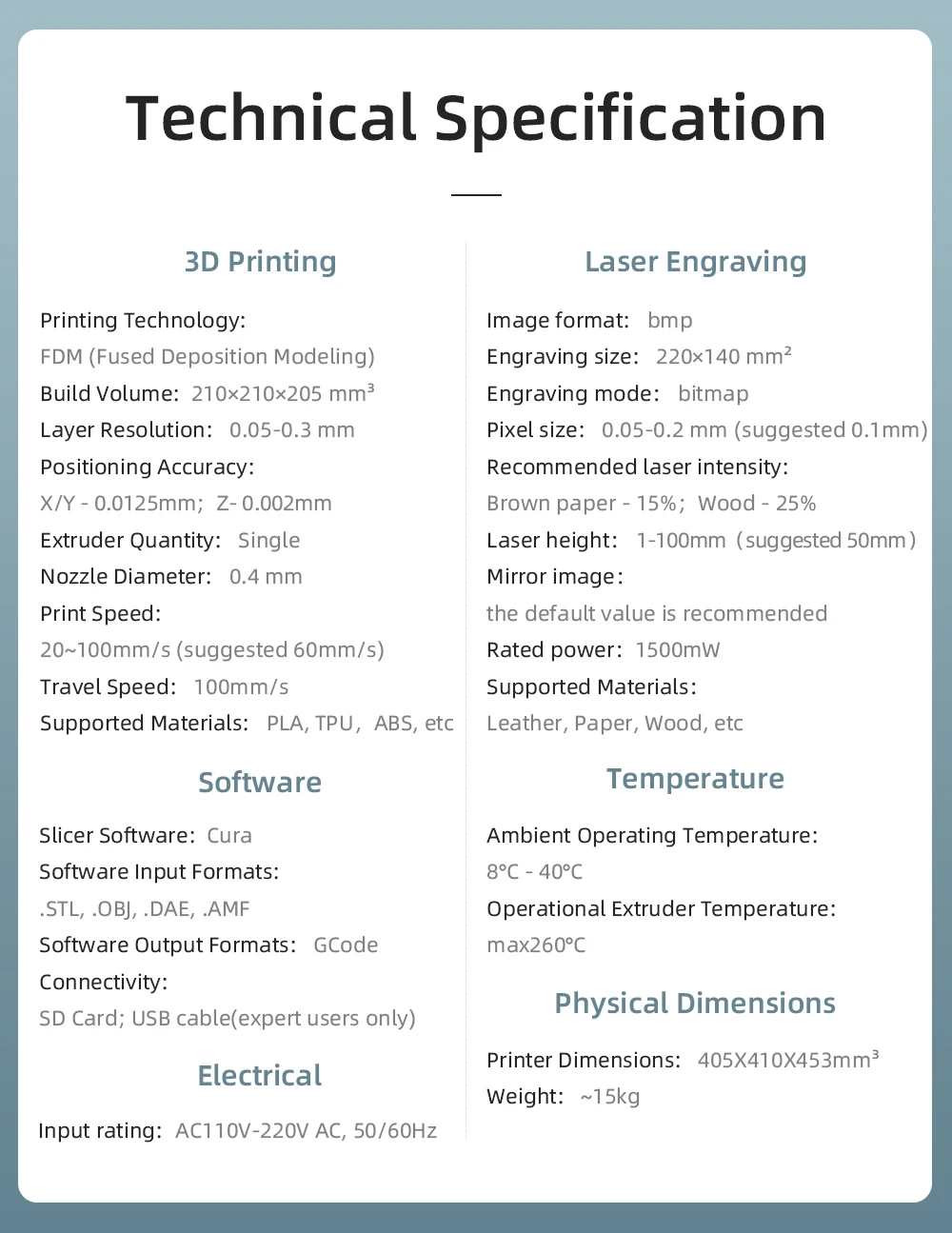

3D Printing Technical Specifications:
- Printing Technology: FDM (Fused Deposition Modeling)
- Build Volume: 210×210×205 mm³
- Layer Resolution: 0.05-0.3 mm; Travel Speed: 100mm/s
- Positioning Accuracy: X/Y- 0.0125mm;Z- 0.002mm
- Extruder Quantity: Single; Nozzle Diameter: 0.4 mm
- Print Speed: 20~100mm/s (suggested 60mm/s)
- Supported Materials: PLA, TPU, etc
- Ambient Operating Temperature: 8°C – 40°C
- Operational Extruder Temperature: max 260°C
- Input Formats: .STL, .OBJ,.DAE, .AMF
- Connectivity: SD Card; USB cable(expert users only)
- Filament Sensor: Yes; Input Rating: 110V-220V AC, 50/60Hz
- Printer Dimensions: 405X410X453mm³; Net Weight:~15kg;

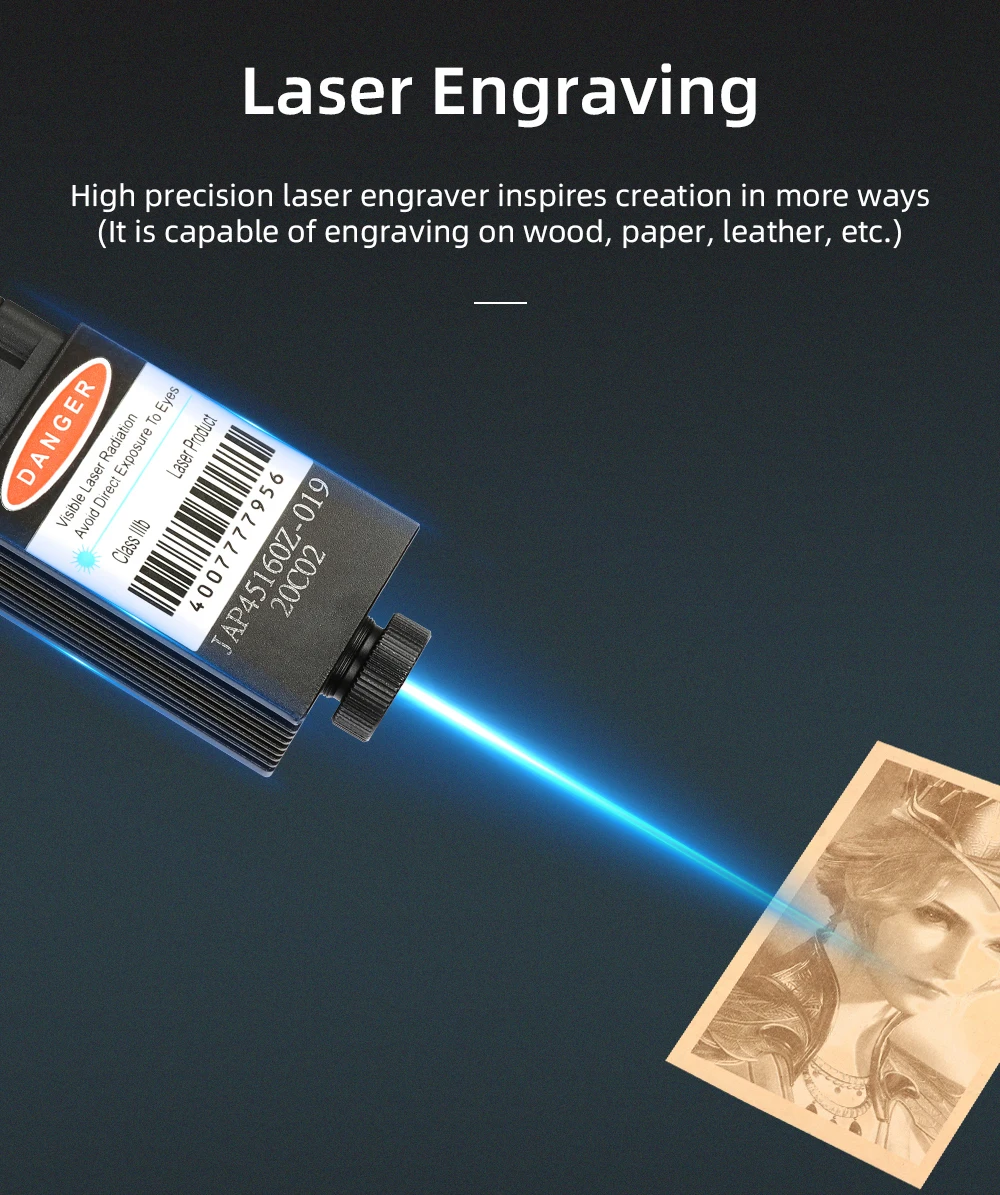

Laser Engraving Technical Specifications
- Image Format: bmp; Engraving Size: 220×140 mm²
- Engraving Mode: Bitmap; Rated Power: 1500mw
- Pixel Size: 0.05-0.4mm (suggested 0.1mm)
- Recommended Laser Intensity: Brown paper – 15%;Wood – 25%
- Laser Height: 1-100mm(suggested 50mm)
- Mirror Image: The default value is recommended
- Supported Materials: Leather, Paper, Wood, etc
